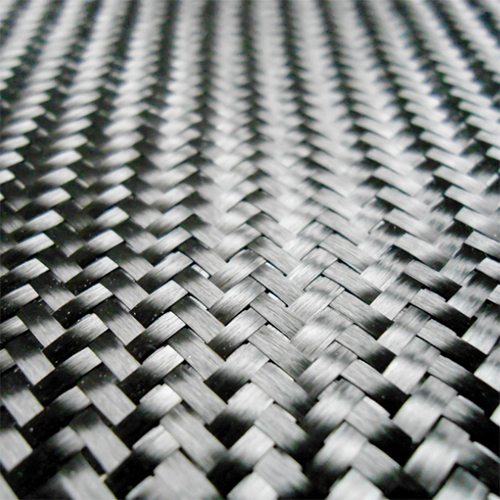

Carbon Fabrics 2X2 Basket Weave

Get a Price/Quote

Carbon Fabrics 2X2 Basket Weave Specification

Weave Style
2x2 Basket Weave

Pattern Type
Basket/Twill

Water Proof
Yes

Width
1000 mm (other widths customizable)

Fabric Material
Pure carbon fiber

Application
Laminates, repair, structural components

Stretch Type
Non-stretch

Material
100% Carbon Fiber

Texture
Smooth and even surface

Style
Woven Plain

Yarn Count
3K, 6K, 12K options

Density
1.76 Gram per cubic centimeter(g/cm3)

Weight
200-600 gsm (grams per square meter)

Length
50 Meter per Roll (customizable)

Strength
High tensile strength (>3500 MPa)

Use
Composite reinforcement, automotive parts, aerospace, marine, sports equipment

Attributes
High strength, lightweight, excellent corrosion resistance, high modulus

Fabric Type
Woven Carbon Fabric

Color
Black

Pattern
2x2 Basket Weave

Size
Custom sizes available

Packaging Type
Roll packed with moisture-proof wrapping

Filament Diameter
7m

Electrical Conductivity
Conductive

Roll Core Diameter
75mm

Resin Compatibility
Epoxy, Polyester, Vinyl Ester

Moisture Absorption
Negligible

Surface Finish
Matte or Glossy available

Abrasion Resistance
Excellent

Shelf Life
Up to 5 years in proper storage conditions

Heat Resistance
Up to 200C (392F)

Thermal Conductivity
High

Carbon Fabrics 2X2 Basket Weave Trade Information

Minimum Order Quantity
100 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Carbon Fabrics 2X2 Basket Weave

The Carbon Fabrics 2X2 Basket Weave is a must-have for industries demanding top performance and exceptional material integrity. Made from 100% pure carbon fiber, this pivotal fabric offers lofty benefits, including high tensile strength (>3500 MPa), excellent abrasion and corrosion resistance, and remarkable thermal stability up to 200C. Its high electrical conductivity, negligible moisture absorption, and smooth texture make it a cost-effective solution for composite reinforcement across automotive, aerospace, and sports equipment sectors. Available in matte or glossy finishes, customizable sizes and weights, and compatible with multiple resins, this fabric defines industry benchmarks.

Exceptional Versatility and User Benefits

The Carbon Fabrics 2X2 Basket Weave stands out with features such as outstanding strength, lightweight design, and minimal moisture absorption. Suitable for automotive, marine, aerospace, and sports equipment applications, it excels in structural reinforcement and repairs. For best results, cut the fabric to desired size, align fiber direction for maximum strength, and impregnate with compatible resin. Its waterproof and non-stretch properties ensure enduring performance in even challenging environments.

Domestic and Global Reach; Seamless Sample Policy

Servicing both the main domestic market in India and diverse export markets globally, we ensure efficient handover and reliable drop-off options for bulk orders. Clients can depend on consistent list pricing, backed by a trustworthy sample policy that allows thorough product evaluation before large-scale procurement. Our streamlined logistics and customer-centric approach enable prompt delivery, supporting manufacturers, exporters, and suppliers with exemplary service standards.

FAQ's of Carbon Fabrics 2X2 Basket Weave:

Q: How do you use Carbon Fabrics 2X2 Basket Weave for composite reinforcement?

A: Cut the fabric to your required dimensions, position it as necessary for optimal fiber direction, then saturate with a compatible resin (epoxy, polyester, or vinyl ester). Cure according to the resin manufacturer's recommendations for best strength and durability.

Q: What industries benefit most from this carbon fabric?

A: Industries such as automotive, marine, aerospace, sports equipment manufacturing, and structural repair companies gain significant advantage from this fabric due to its high tensile strength, lightweight nature, and resistance to corrosion and abrasion.

Q: When should I choose glossy vs. matte surface finish for my application?

A: Select a matte finish for applications where a non-reflective, subtle appearance is desired and glossy when you want a sleek, high-end look or increased light reflectivity, depending on your project's specific functional or aesthetic needs.

Q: Where are your main export and domestic markets located?

A: Our primary domestic market is India, while our main export markets encompass North America, Europe, Southeast Asia, and the Middle East, ensuring global availability and reliable delivery channels.

Q: What is the moisture absorption rate for this fabric?

A: The carbon fabric demonstrates negligible moisture absorption, making it ideal for environments that require water-resistant materials and stable performance.

Q: What is the process for requesting product samples?

A: You may request product samples through our customer support team. Samples are provided to enable full evaluation before placing bulk orders, ensuring product suitability and buyer confidence.
