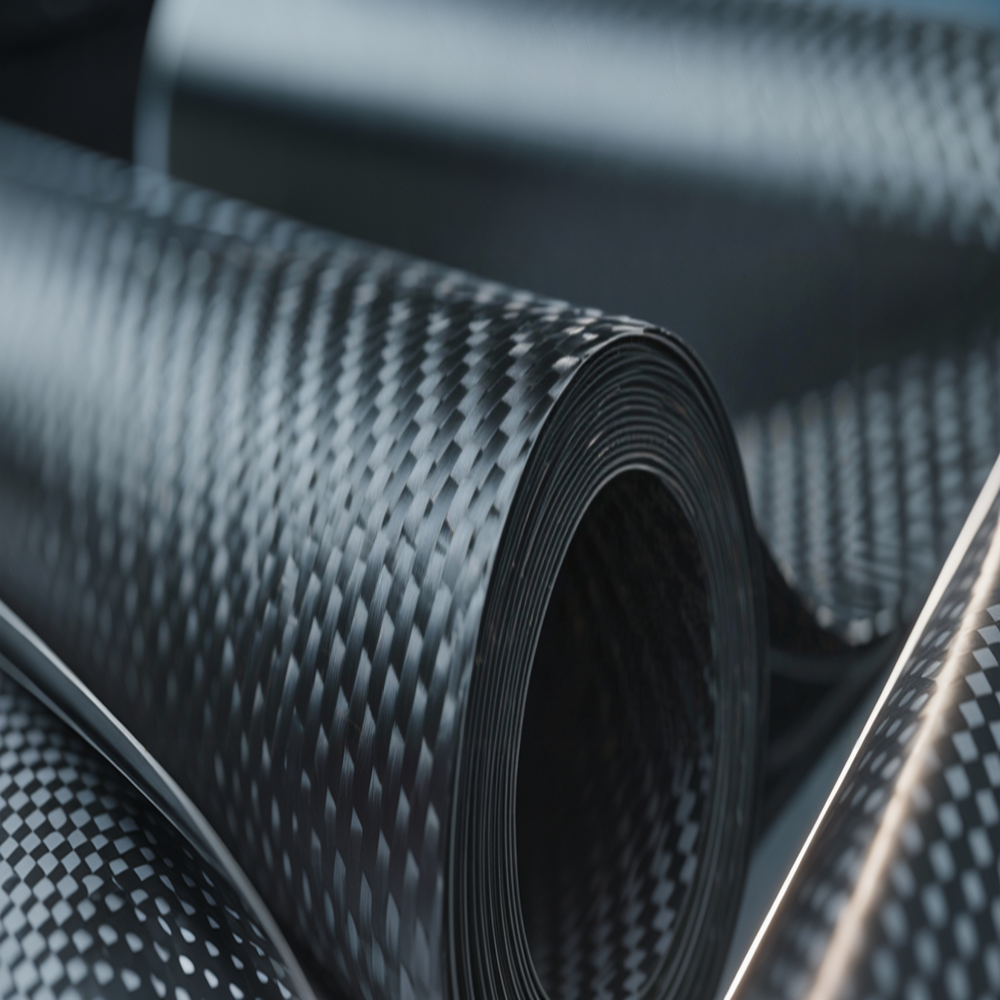

1K 120gsm Carbon Fiber Fabric

Name: 1K 120gsm Carbon Fiber Fabric
Brand: MARSHALL PACKINGS & INSULATIONS INDUSTRIES
Price: 4800.0 INR
Availability: InStock

Price 4800.0 INR/ Meter

Get a Price/Quote

1K 120gsm Carbon Fiber Fabric Specification

Weave Style
PLAIN/TWILL/SATIN

Usage & Applications
UAV, DRONES, COMPOSITE PARTS

Width
1000 Meter (m)

Color
BLACK

Fabric Type
CARBON FIBER

Length
100 Meter (m)

Material
PAN BASE CARBON

Use
Other

Feature
Other

1K 120gsm Carbon Fiber Fabric Trade Information

Minimum Order Quantity
100 Meter

Supply Ability
5000 Per Month

Delivery Time
10 Days

Sample Available
No

About 1K 120gsm Carbon Fiber Fabric

Carbon Fiber Fabric 1K 120 GSM is a premium woven reinforcement material manufactured from 1,000-filament (1K) carbon fiber tows, designed to deliver higher mechanical strength while retaining good drapability and a fine surface finish.

With an areal weight of 120 GSM, this fabric provides greater structural contribution compared to lighter 1K fabrics (50100 GSM), making it ideal for load-bearing composite laminates, performance components, and precision structures where strength, control, and appearance are all important.

Premium Strength for Advanced Applications

With its PAN base carbon composition and >4000 MPa tension strength, this 1K 120gsm Carbon Fiber Fabric ensures exceptional performance under demanding conditions. Suitable for aerospace, marine, construction, and sports equipment, it provides reliable structural reinforcement with a lightweight profile. Its low stretch and high durability make it a key material in manufacturing composite parts and strengthening critical structures.

Versatile Weave Options for Precision Engineering

Choose from plain, twill, or satin weave styles to match the specific needs of your project. Each weave offers unique advantages in terms of flexibility, drapability, and appearance, allowing engineers and manufacturers to achieve optimal results in everything from UAVs and drones to automotive panels and construction reinforcement.

FAQ's of 1K 120gsm Carbon Fiber Fabric:

Q: How is 1K 120gsm Carbon Fiber Fabric used in composite manufacturing?

A: This fabric is layered with resin to form lightweight, high-strength composite panels and structures. It offers excellent structural reinforcement in composite parts for industries such as aerospace, marine, automotive, and construction.

Q: What are the differences between plain, twill, and satin weave options?

A: Plain weave offers uniform appearance and stability, twill provides enhanced drapability and flexibility, while satin weave delivers a smooth, glossy finish and ease of layup for complex surfaces. The choice depends on your application needs and desired properties.

Q: When should I choose 1K 120gsm Carbon Fiber Fabric over heavier fabrics?

A: Opt for this fabric when you require a balance of light weight and structural strength, such as in UAVs, drones, sports equipment, or reinforcing delicate components where reducing mass is critical without compromising on tensile properties.

Q: Where can this carbon fiber fabric be applied in construction reinforcement?

A: It is widely used in strengthening beams, columns, slabs, and joints. Its high strength and low weight make it ideal for retrofitting existing structures or enhancing earthquake resistance in buildings and bridges.

Q: What are the main steps in processing this fabric into finished composite parts?

A: The fabric is cut to shape, layered as required, impregnated with resin, and then cured under heat and pressure. This process forms rigid, high-strength composite structures suited to rigorous industrial and engineering applications.

Q: How does the waterproof feature benefit industrial and marine uses?

A: Being waterproof, the carbon fiber fabric resists degradation and maintains strength when exposed to moisture or harsh environmental conditions, making it highly reliable for marine equipment, outdoor reinforcements, and water-facing structures.
