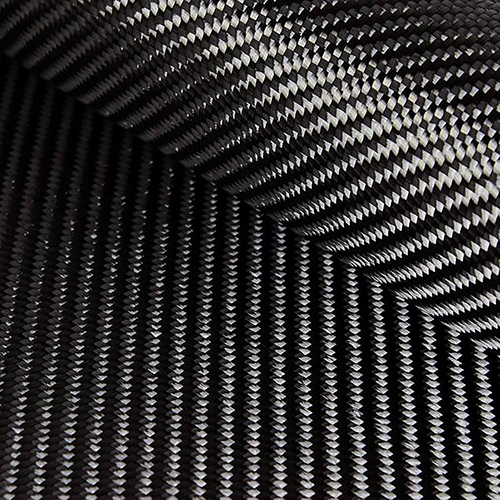

12K Twill Weave Carbon Fiber Fabric

Get a Price/Quote

12K Twill Weave Carbon Fiber Fabric Specification

Elongation
~1.5%

Elasticity
High

Crimp Frequency
Low (Twill Weave)

Crimp Recovery
Excellent

Staple Length
N/A (Continuous Filament)

Material
100% Carbon Fiber

Fiber Length
Continuous Filament

Fineness (%)
Standard 12K

Pattern
Twill Weave

Use
Aerospace, Automotive, Sports Equipment, Marine, Industrial Applications

Feature
High Strength, Lightweight, Corrosion Resistant, High Modulus, Excellent Fatigue Resistance

Weave Style
2x2 Twill

Temperature Resistance
-40C to +250C (Service temperature range)

Areal Weight
200 gsm - 600 gsm (Commonly 220 gsm, 300 gsm, 400 gsm)

Packaging
Roll (Standard: 50 meter length)

Yarn Count
12,000 filaments (12K)

Moisture Absorption
Negligible

Width
1000 mm (Standard); Customizable

Tensile Strength
3400 MPa

Color
Black (Carbon Fiber Natural Color)

Tensile Modulus
230 GPa

Thickness
0.25 mm - 0.35 mm (varies by gsm)

Surface Treatment
Sizing for epoxy/unsized

12K Twill Weave Carbon Fiber Fabric Trade Information

Minimum Order Quantity
100 Meter

Supply Ability
5000 Per Month

Delivery Time
10 Days

About 12K Twill Weave Carbon Fiber Fabric

Highlighted for its valorous performance and gilt-edged reliability, our 12K Twill Weave Carbon Fiber Fabric stands as a valuable choice for advanced engineering projects. Manufactured from 100% continuous 12K carbon fibers, this fabric offers formidable tensile strength (3400 MPa) and high modulus (230 GPa), combining lightweight grace with superb corrosion resistance and negligible moisture absorption. Available in customizable widths and weights, it ensures excellence in aerospace, automotive, marine, and industrial applications. Enjoy instant checkout options, valuable promotions, and swift shipment directly from India's leading exporter, manufacturer, and supplier.

Premier Uses and Versatile Applications

Our 12K Twill Weave Carbon Fiber Fabric is widely revered for use in aerospace, automotive, marine, sports equipment, and demanding industrial settings. Renowned for its gilt-edged strength and lightweight form, it is typically applied via hand layup, vacuum infusion, or Prepreg processes. Its unique twill weave allows for excellent drape and adaptability to complex shapes, delivering valorous performance in components requiring high rigidity, corrosion resistance, and outstanding fatigue tolerance.

Sample Availability, Robust Supply, and Sample Policy

Experience our standard of quality with readily available samples of the 12K Twill Weave Carbon Fiber Fabric. While a minimal charge (outlay) applies to most samples, we ensure prompt shipment to interested clients. Our reliable supply chain ensures consistent availability and rapid dispatch for both small and bulk orders. Contact us to discuss your sample needs, with clear policies and competitive terms tailored to help you evaluate our valuable fabric before a full-scale purchase.

FAQ's of 12K Twill Weave Carbon Fiber Fabric:

Q: How is the 12K Twill Weave Carbon Fiber Fabric typically used?

A: This fabric is widely employed in aerospace, automotive, marine, and sports equipment manufacturing, mainly for parts that demand high strength-to-weight ratio and resistance to chemicals and fatigue.

Q: What advantages does the twill weave provide in this fabric?

A: The 2x2 twill weave gives better drapeability and conformity to complex shapes while maintaining low crimp frequency and excellent recovery, resulting in a strong and aesthetically appealing finish.

Q: When can I expect shipment after placing an order?

A: Orders are usually processed quickly, with instant checkout and standard rolls of 50 meters in length shipped out as soon as payment and order details are confirmed. Sample requests are shipped with similar efficiency.

Q: Where do your carbon fiber fabrics originate from?

A: All 12K Twill Weave Carbon Fiber Fabrics are manufactured in India by our company, which is recognized as a leading exporter, producer, and supplier of high-performance composite materials.

Q: What is the process for requesting a fabric sample, and is there a cost involved?

A: Clients can request samples by contacting our team. A nominal outlay is charged for samples, covering handling and shipment. Our sample policy is designed to facilitate informed decision-making before placing bulk orders.

Q: How does the fabric's surface treatment enhance its application?

A: Surface treatment, such as sizing for epoxy resins, ensures optimal adhesion and compatibility in composite manufacturing, enhancing performance and durability in the finished product.
