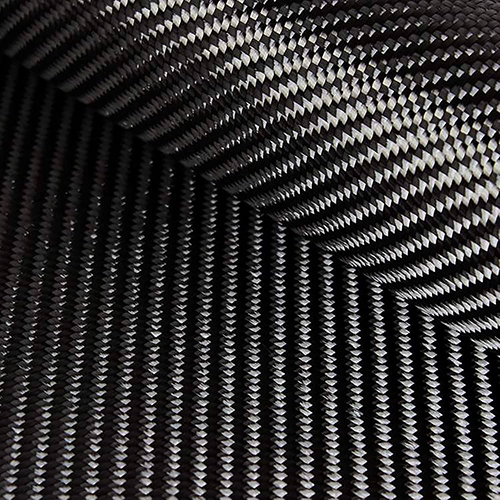

3K Twill Weave Carbon Fiber Fabric

Get a Price/Quote

3K Twill Weave Carbon Fiber Fabric Specification

Crimp Frequency
Low

Elongation
1.5% - 2.0%

Crimp Recovery
Excellent

Elasticity
High Modulus

Staple Length
Continuous

Material
100% Carbon Fiber

Fiber Length
Continuous Filament

Fineness (%)
3K (3000 filaments per tow)

Pattern
Twill Weave 2x2

Use
Aerospace, Automotive, Sports Equipment, Marine, Industrial Applications

Feature
High Strength, Lightweight, Corrosion Resistant, High Temperature Resistance

Thickness
0.24 mm nominal

Surface
Smooth, Glossy on one side

Resin Compatibility
Epoxy, Vinyl Ester, Polyester

Service Temperature
Up to 180C (356F) continuous

Filament Diameter
7 microns

Color
Black (carbon fiber natural)

Width
1000mm (39 inches) standard, customizable

Tensile Modulus
230 GPa

Weight
200 gsm (Grams/Square Meter), other weights available

Tensile Strength
4000 MPa

3K Twill Weave Carbon Fiber Fabric Trade Information

Minimum Order Quantity
100 Meter

Supply Ability
5000 Per Month

Delivery Time
10 Days

About 3K Twill Weave Carbon Fiber Fabric

Experience the brilliance of our 3K Twill Weave Carbon Fiber Fabric, now available as a special new release at a superb price cut! Renowned for its top-ranking performance, this 100% carbon fiber fabric boasts a smooth, glossy finish on one side and is engineered with a standard width of 1000mm, customizable options, and a nominal thickness of 0.24 mm. Delivering exceptional tensile strength (4000 MPa) and high modulus (230 GPa), it withstands continuous service temperatures up to 180oC. Perfect for aerospace, automotive, sports equipment, marine, and industrial applications, its high strength, low weight, and superior corrosion resistance guarantee outstanding results every time.

Brilliant Features and Applications

The 3K Twill Weave Carbon Fiber Fabric stands out for its high strength, lightweight construction, and corrosion resistance. Highlighted by its 2x2 twill pattern, low crimp frequency, and excellent crimp recovery, it's the top choice for professionals. Applications span across aerospace, automotive, sports equipment, marine, and industrial industries, delivering reliability and performance. With a smooth, glossy surface on one side, this fabric is engineered for both aesthetics and functionality on a broad range of substrates.

Export Market Valuation & Certifications

Our 3K Twill Weave Carbon Fiber Fabric is highly valued in major export markets worldwide, thanks to its lowest price and unmatched quality. We promptly ship samples for customer evaluation and ensure the product carries all necessary certifications for global standards. Whether you represent aerospace, automotive, or marine sectors, rest assured that each roll meets stringent international requirements, making it a premier choice for competitive, quality-driven projects.

FAQ's of 3K Twill Weave Carbon Fiber Fabric:

Q: How should the 3K Twill Weave Carbon Fiber Fabric be stored and handled prior to use?

A: Store the fabric in a dry, temperature-controlled environment, away from direct sunlight and moisture. Handle with clean gloves to prevent contamination and preserve the glossy surface.

Q: What process is recommended for bonding this carbon fiber fabric to substrates?

A: This fabric is compatible with epoxy, vinyl ester, and polyester resins. The recommended process involves preparing the substrate, applying the chosen resin, and laying up the fabric for precise bonding and optimal mechanical properties.

Q: Where can this fabric be used for optimal performance?

A: Optimal performance is achieved in demanding applications such as aerospace, automotive panels, sports gear, marine parts, and various industrial components, leveraging its strength and lightweight nature.

Q: When will samples be shipped upon placing a request?

A: Samples are shipped promptly after receiving your request, allowing rapid evaluation and comparison at your facility.

Q: What are the main benefits of selecting this carbon fiber fabric over traditional materials?

A: Choosing this fabric offers benefits like high tensile strength, reduced weight, excellent corrosion resistance, and the durability to withstand high temperatures, making it a superior replacement for metals and traditional composites.
