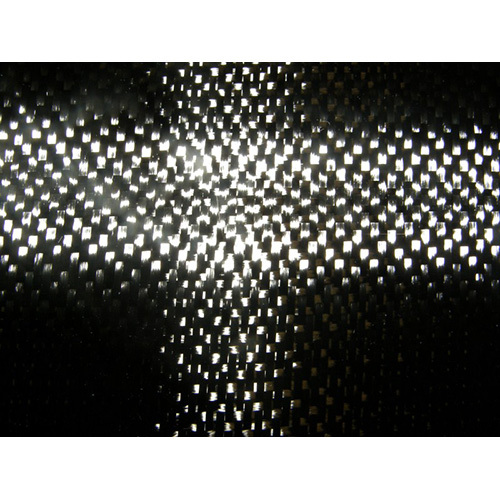

4HS Satin Weave Carbon Fabric

Get a Price/Quote

4HS Satin Weave Carbon Fabric Specification

Application
Prepreg, vacuum infusion, hand lay-up, RTM, reinforcement

Stretch Type
Non-stretch / Stable

Water Proof
Yes

Width
1000 mm or 1200 mm (custom available)

Pattern Type
Satin

Weave Style
4HS Satin Weave

Fabric Material
Carbon Fiber Reinforced Polymer (FRP)

Material
100% Carbon Fiber

Texture
Smooth, soft, and flexible

Style
Continuous Filament

Yarn Count
3K standard (custom options available)

Density
1.76 Gram per cubic centimeter(g/cm3)

Weight
200g/m2 - 600g/m2 (varies with type)

Length
50 meter roll (customizable)

Strength
High modulus, excellent tensile strength

Use
Reinforcement, composites manufacturing, aerospace, automotive, marine, sports equipment

Fabric Type
Technical Textile

Color
Black

Size
1K, 3K, 6K, 12K (as per requirement)

Roll Core Inner Diameter
3 inches

Processing Methods
Compatible with epoxy, polyester, vinyl ester, phenolic resins

Elongation at Break
1.5% - 2.0%

Fire Retardancy Standard
Meets UL94 V-0 requirements

Filament Diameter
7 m

Surface Finish
Matte / Semi-gloss

Tensile Strength
3500 MPa (depending on fiber type)

Filament Type
PAN-based carbon fiber

Moisture Absorption
< 0.2%

Chemical Resistance
Excellent against acids, alkalis, solvents

Shelf Life
Indefinite under standard storage conditions

Electrical Conductivity
High

Thermal Resistance
Up to 400C (inert atmosphere)

Porosity
Low, especially suitable for vacuum processes

4HS Satin Weave Carbon Fabric Trade Information

Minimum Order Quantity
100 Meter

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About 4HS Satin Weave Carbon Fabric

Experience extraordinary reinforcement solutions with our 4HS Satin Weave Carbon FRP Fabric, crafted to deliver splendiferous strength and first-string performance. Affordably priced yet uncompromising in quality, this fabric features instant savings for manufacturers and advanced composite engineers. With thermal resistance up to 400C (in inert atmosphere), it boasts a high tensile strength of 3500 MPa, superior chemical resistance, and fire retardancy to UL94 V-0 standards. Its PAN-based carbon filament ensures a smooth, flexible, lightweight, and corrosion-resistant surface ideal for aerospace, automotive, marine, and industrial uses. Custom roll sizes and densities make it the featured choice for versatile applications.

Surface Applications, General and Specific Uses, and Key Features

Our 4HS Satin Weave Carbon FRP Fabric stands out with a smooth matte or semi-gloss surface, making it perfect for high-quality finishes in aerospace, automotive panels, and marine components. Its low porosity and high electrical conductivity suit it for technical textile applications, while fire- and chemical-resistant properties provide safety and durability for both general reinforcement and specialized composite manufacturing such as prepreg, RTM, and vacuum infusion.

Export Markets, Packaging, and Transport Services

Exporting globally, our 4HS Satin Weave Carbon FRP Fabric reaches markets across North America, Europe, Asia, and beyond. We invest in robust packaging-rolls secured with protective wrapping and placed within sturdy cartons for safe transportation. All orders are carefully handed over to reliable transport services for efficient delivery, typically within 10-14 business days, ensuring the product arrives safely and maintains its premium quality upon receipt.

FAQ's of 4HS Satin Weave Carbon FRP Fabric:

Q: How can the 4HS Satin Weave Carbon FRP Fabric be used in composites manufacturing?

A: This fabric integrates seamlessly into processes such as vacuum infusion, hand lay-up, RTM, and prepreg techniques, offering lightweight and strong reinforcement for aerospace, automotive, marine, and industrial parts.

Q: What are the main benefits of using this carbon FRP fabric?

A: Key advantages include extraordinary tensile strength, high modulus, superb chemical and fire resistance, impressive thermal tolerance up to 400C, lightweight design, and excellent adaptability for custom applications.

Q: Where is the 4HS Satin Weave Carbon FRP Fabric primarily applied?

A: It is used across aerospace, automotive, marine, and sports equipment industries, serving both general reinforcement and highly technical textile needs due to its robust features and stability.

Q: What is the standard shelf life and storage recommendation for this product?

A: The fabric holds an indefinite shelf life when stored under standard, dry conditions, maintaining its properties for extended periods without degradation.

Q: How is the product packaged and transported to ensure its integrity?

A: Each roll is securely wrapped and boxed, then handed over to trusted logistics partners, ensuring safe delivery to global markets within 10-14 business days post-dispatch.
